MICRO SPEAKER / MODEL 1511
11×15mm Ultra-Thin Micro Speaker
11×15mm 超薄微型扬声器
A compact 11×15×3.0mm Micro Speaker / Mylar Speaker for voice, notification sound and general audio playback in electronic devices with limited internal space.
11×15×3.0 mmDimensions
8Ω ±15%Impedance
1.0W RatedPower
1.2W MaxMaximum power
94 ±3dBSensitivity
700Hz ±20%Resonant frequency
Product Overview产品概述

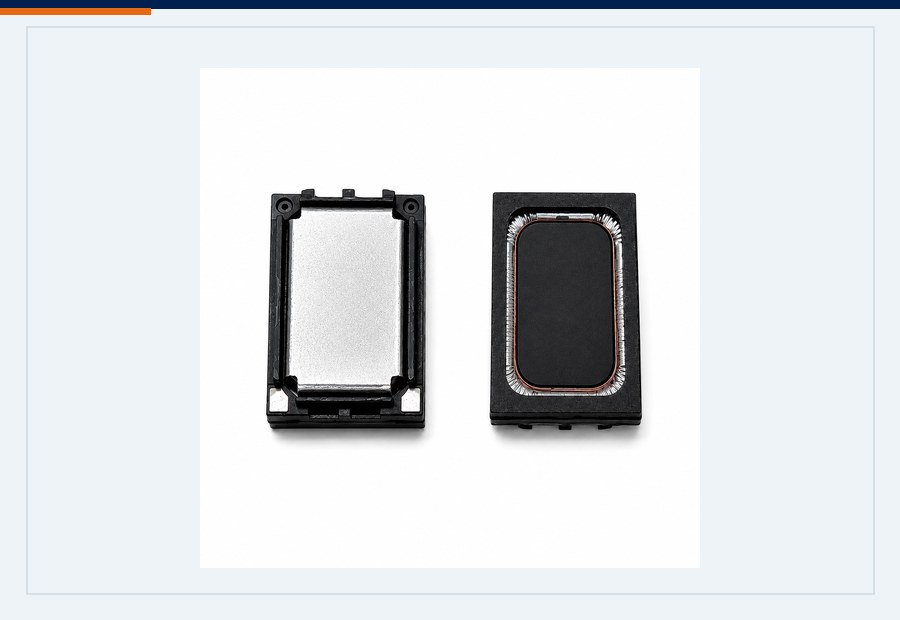

The 1511 model is an ultra-thin micro speaker measuring 11×15×3.0mm. It is intended for compact electronic devices where installation space is limited, including voice prompts, notification sounds and general audio playback.
Jiachuan Electronics can support product selection, sample evaluation, specification matching and batch supply according to the confirmed project requirements.
Key Features主要特点
Core product information is provided directly in the page HTML for purchasing review and technical evaluation.
Technical Specifications技术规格
Confirmed 1511 product data. Final project specifications should be reviewed against the approved sample and technical documents.
| Product Type | Micro Speaker / Mylar Speaker |
|---|---|
| Dimensions | 11 × 15 × 3.0 mm |
| Impedance | 8Ω ±15% |
| Rated Power | 1.0W |
| Maximum Power | 1.2W |
| Resonant Frequency | F0 700Hz ±20% |
| Sensitivity | 94 ±3dB |
| Frequency Range | F0 ~ 20kHz |
| Connection | Lead Wire / 引线式 |
Mechanical Dimensions机械尺寸

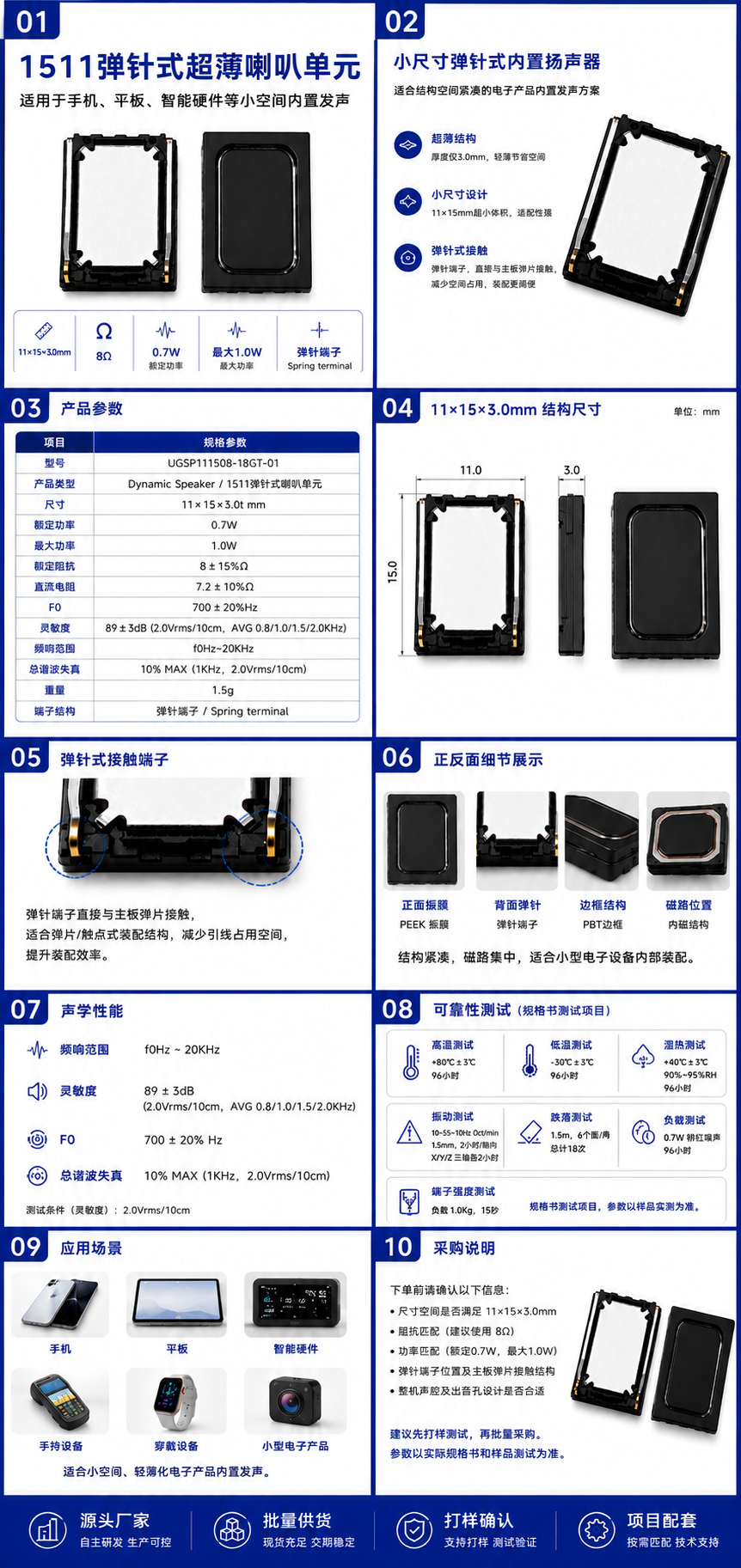

The available 1511 dimensional drawing is shown below. Please confirm drawing revision and mounting details during project evaluation.
Frequency Response频响与阻抗曲线
The current site materials do not include a verified 1511 frequency response and impedance curve. No simulated curve is presented here.
Verified 1511 frequency response / impedance curve to be added when the original test document is confirmed.
Applications应用领域
Typical application directions for this compact speaker format include:
Project Support项目配套
Jiachuan Electronics supports practical project coordination from sample evaluation to batch supply.
Manufacturing & Experience制造与经验
Electroacoustic Expertise Since 2002
Our electroacoustic business experience dates back to 2002. The legal entity Changzhou Jiachuan Electronics Co., Ltd. was established on June 13, 2023. This wording refers to the development history of the electroacoustic business and does not state that Jiachuan Electronics was established in 2002.
