Passive Buzzers

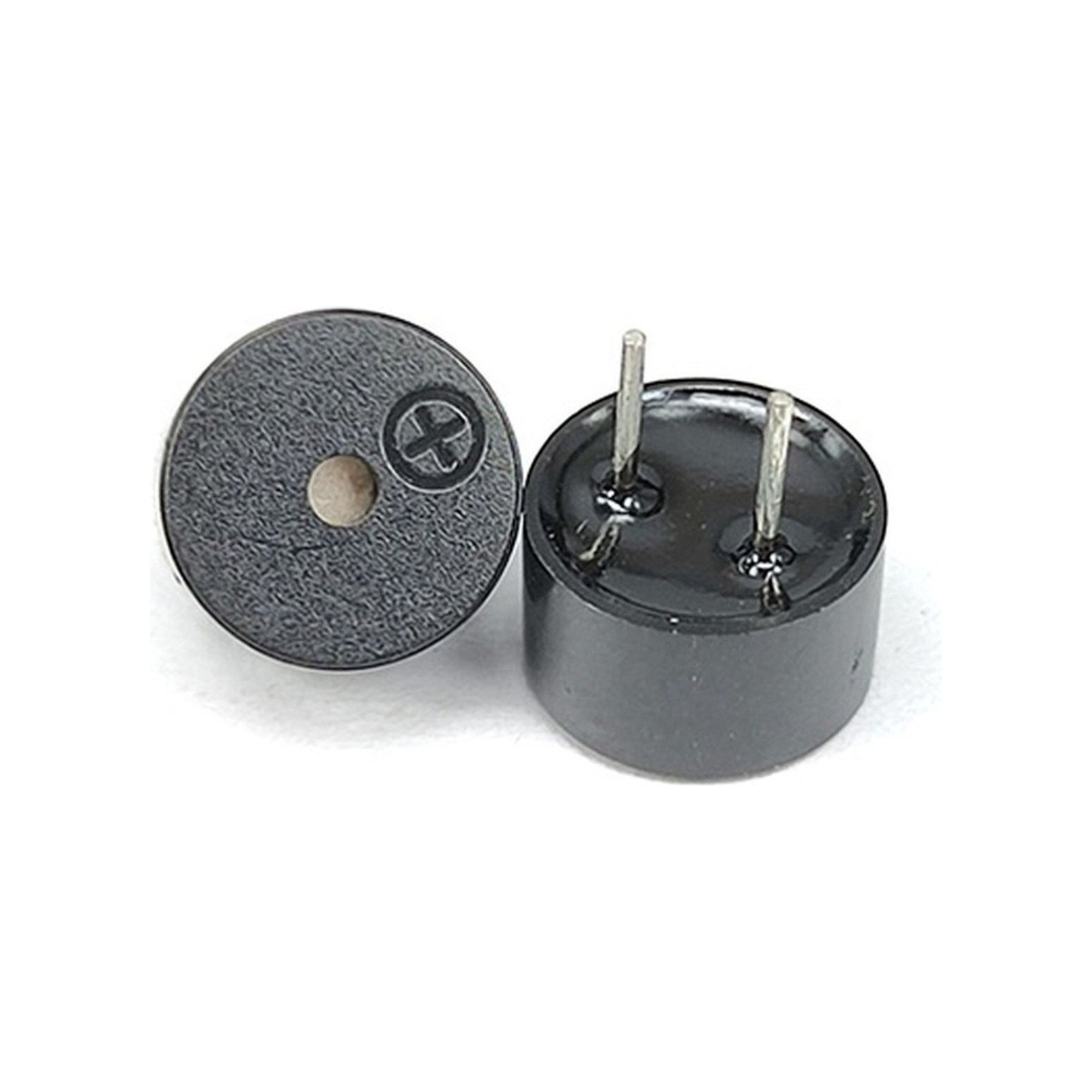

JC-BUZ9505-P01 Passive Buzzer
Model: JC-BUZ9505-P01
JC-BUZ9505-P01 is a passive buzzer from Jiachuan Electronics. Confirm final suitability using the datasheet, sample evaluation, and device-level testing.
PRODUCT OVERVIEW
What is this product?
JC-BUZ9505-P01 is a passive buzzer from Jiachuan Electronics. Confirm final suitability using the datasheet, sample evaluation, and device-level testing.
Product series: Passive Buzzers. Match the installation space and drive conditions, then confirm final suitability with the datasheet, samples and device testing.
TECHNICAL SPECIFICATIONS
Technical Specifications
| Sound Pressure Level (SPL) | Min.80dB at 10cm / 2700Hz |
|---|---|
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |

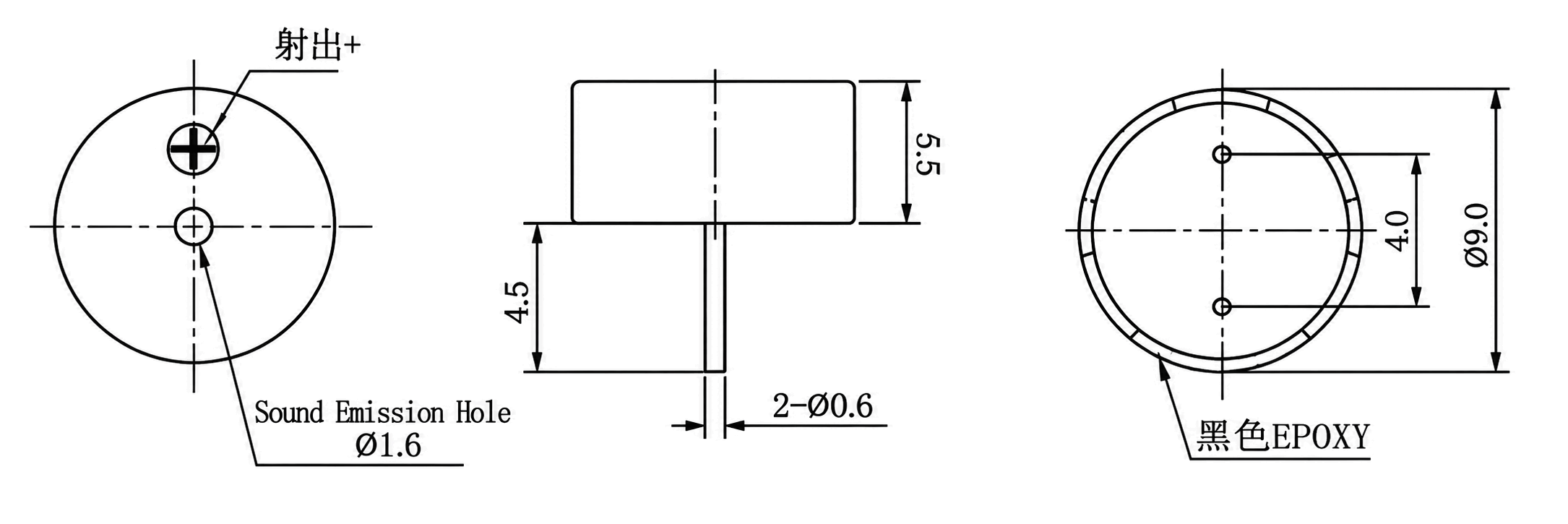

Mechanical Dimensions

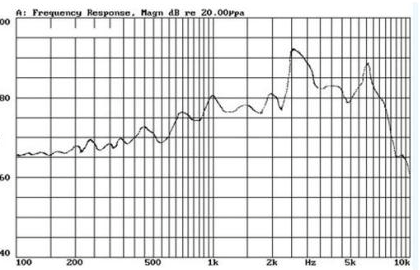

Frequency Response / Impedance Curve
Project Support
Product selection, sample evaluation, specification matching, small-batch validation and volume supply. Connection adjustments depend on the model and project requirements; new tooling or substantial structural changes require a separate assessment.
Frequently Asked Questions
What is JC-BUZ9505-P01?
JC-BUZ9505-P01 is a Jiachuan Electronics Passive Buzzer.
How should I confirm whether JC-BUZ9505-P01 fits my project?
Confirm installation space, driver circuit or amplifier conditions, target impedance/power, connection method and application requirements. Existing drawings or samples can be used for further matching.
Can samples of JC-BUZ9505-P01 be provided?
Contact Jiachuan Electronics to confirm sample quantity, lead time and the exact specification required for the project.
Selection Guidance
Read speaker selection and specification guidance ↗PROJECT INQUIRY
Start with a sample, drawing or specification.
Contact Jiachuan for product selection, sample evaluation, small-batch validation and volume supply.
