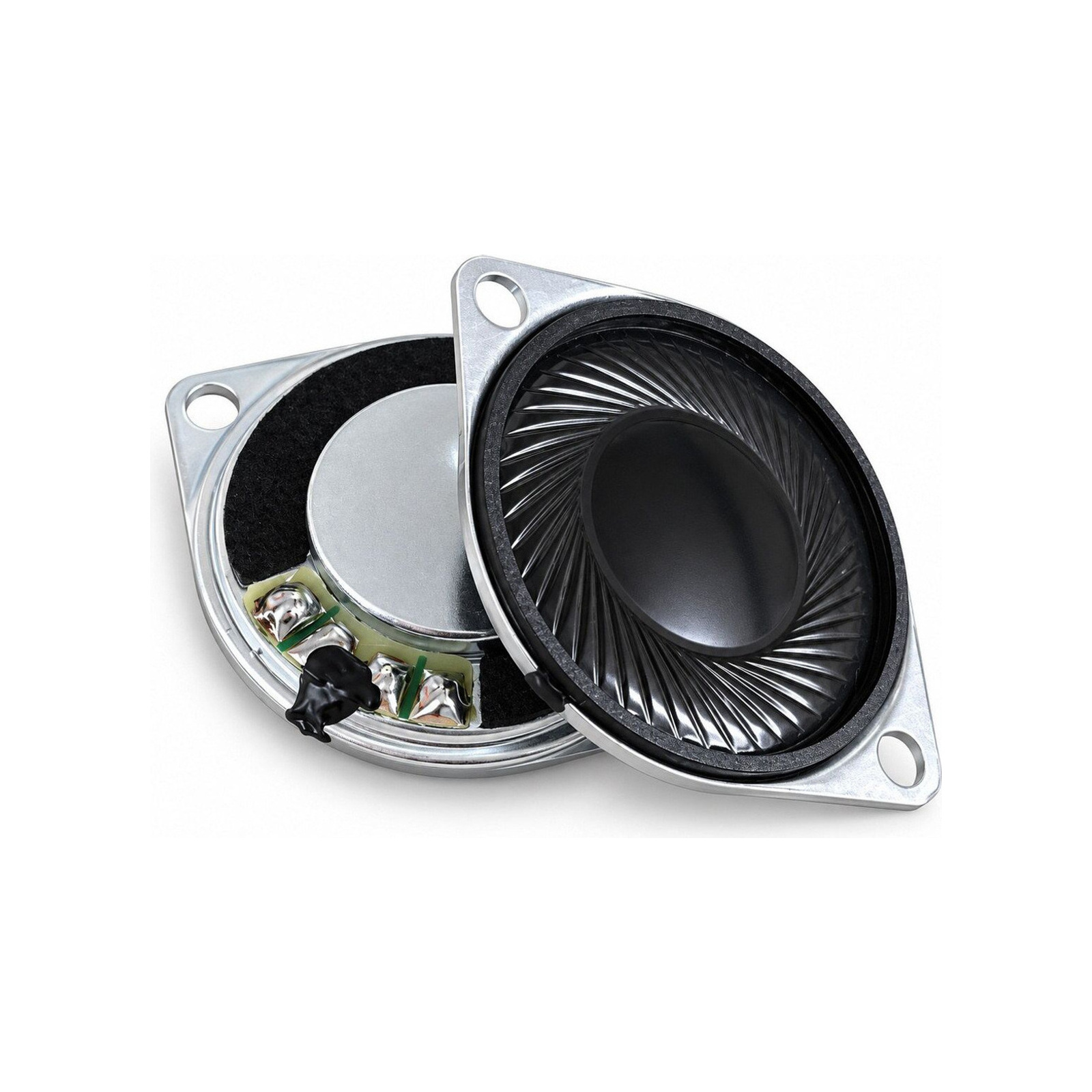

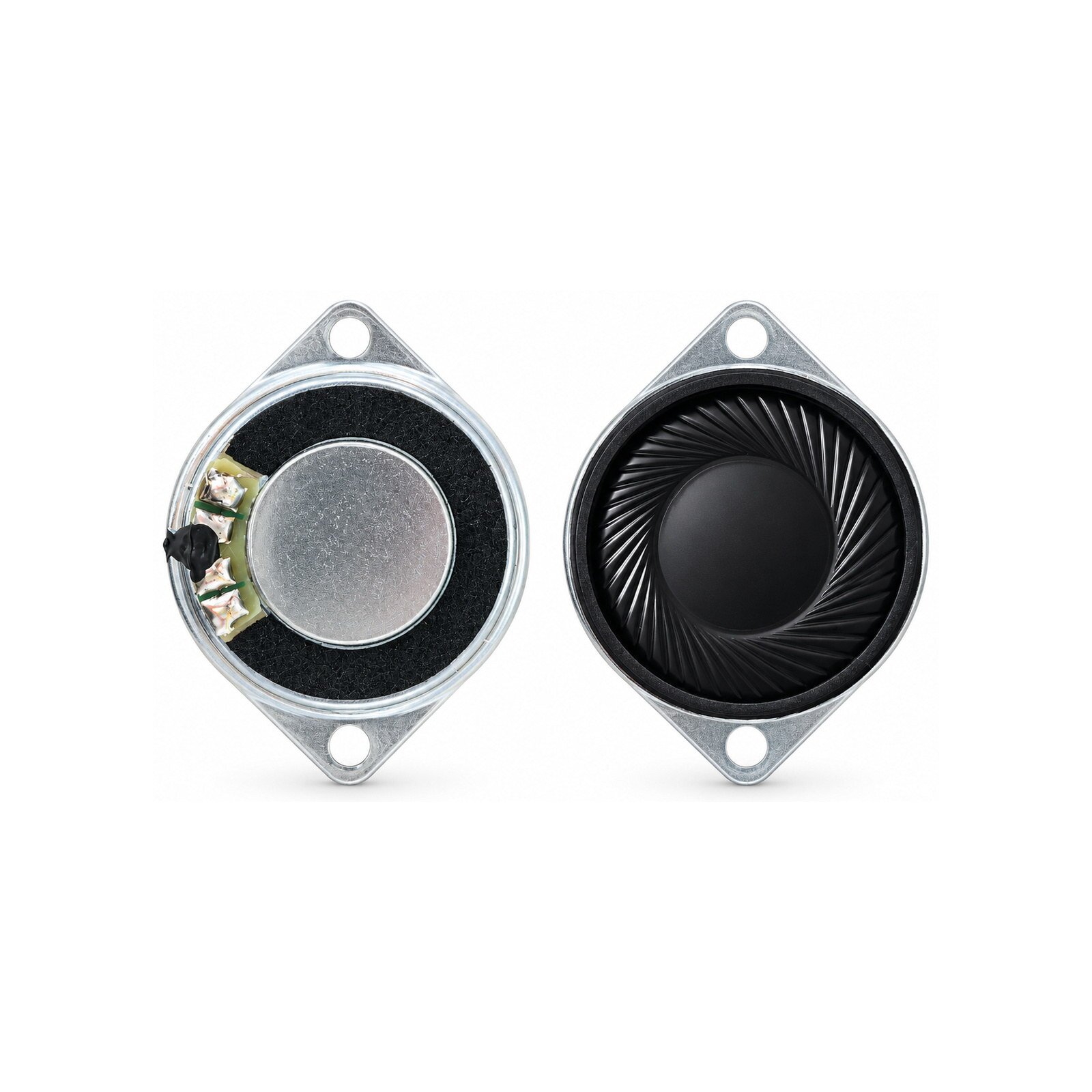

JC-SPKD28-MF01-8R1W-WP 28×5.5mm Round Dynamic Speaker
Model: JC-SPKD28-MF01-8R1W-WP
JC-SPKD28-MF01-8R1W-WP is a round dynamic speaker from Jiachuan Electronics. Confirm final suitability using the datasheet, sample evaluation, and device-level testing.
PRODUCT OVERVIEW
What is this product?
JC-SPKD28-MF01-8R1W-WP is a round dynamic speaker from Jiachuan Electronics. Confirm final suitability using the datasheet, sample evaluation, and device-level testing.
Product series: Round Speakers. Match the installation space and drive conditions, then confirm final suitability with the datasheet, samples and device testing.
TECHNICAL SPECIFICATIONS
Technical Specifications
| Dimensions | 28×5.5mm |
|---|---|
| Impedance | 8Ω ±15% |
| Resonant Frequency (F0) | 700 Hz ±20% |
| Total Harmonic Distortion (THD) | ≤10% |
| Weight | 12 g |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -30°C to +60°C |

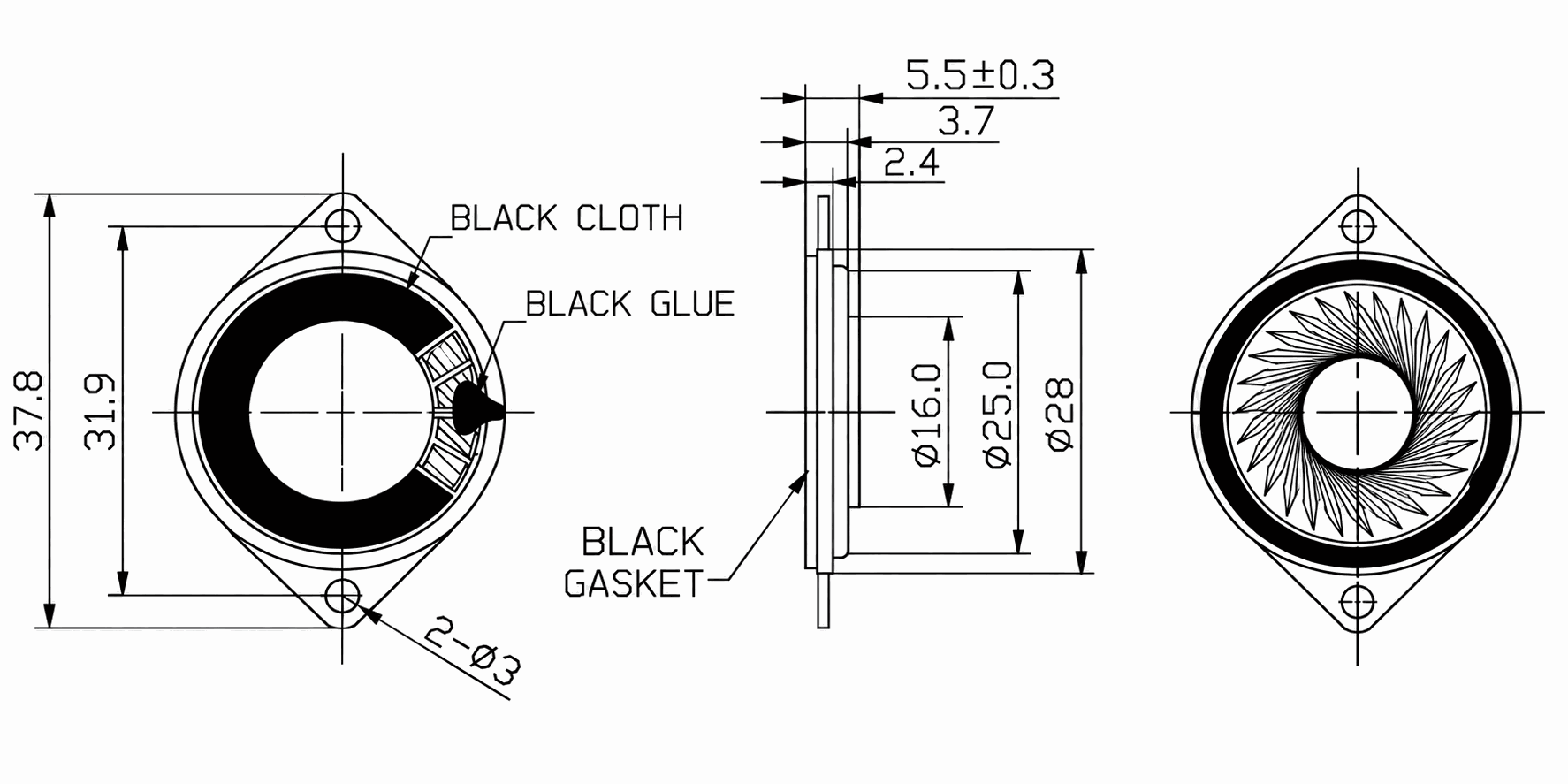

Mechanical Dimensions

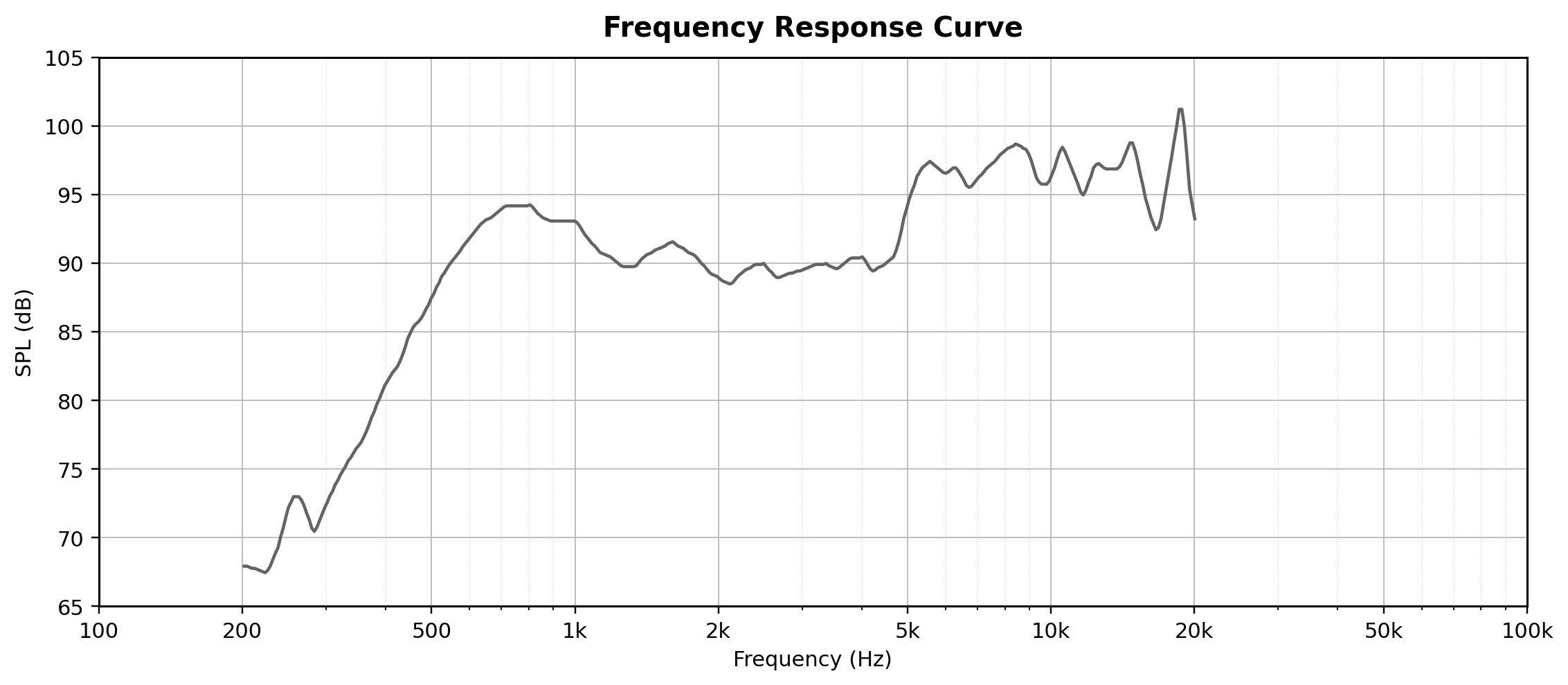

Frequency Response / Impedance Curve
Project Support
Product selection, sample evaluation, specification matching, small-batch validation and volume supply. Connection adjustments depend on the model and project requirements; new tooling or substantial structural changes require a separate assessment.
Frequently Asked Questions
What is JC-SPKD28-MF01-8R1W-WP?
JC-SPKD28-MF01-8R1W-WP is a Jiachuan Electronics Round Dynamic Speaker.
What is the size of JC-SPKD28-MF01-8R1W-WP?
The confirmed size is 28×5.5mm.
What is the impedance of JC-SPKD28-MF01-8R1W-WP?
The confirmed impedance is 8Ω ±15%.
How should I confirm whether JC-SPKD28-MF01-8R1W-WP fits my project?
Confirm installation space, driver circuit or amplifier conditions, target impedance/power, connection method and application requirements. Existing drawings or samples can be used for further matching.
Can samples of JC-SPKD28-MF01-8R1W-WP be provided?
Contact Jiachuan Electronics to confirm sample quantity, lead time and the exact specification required for the project.
