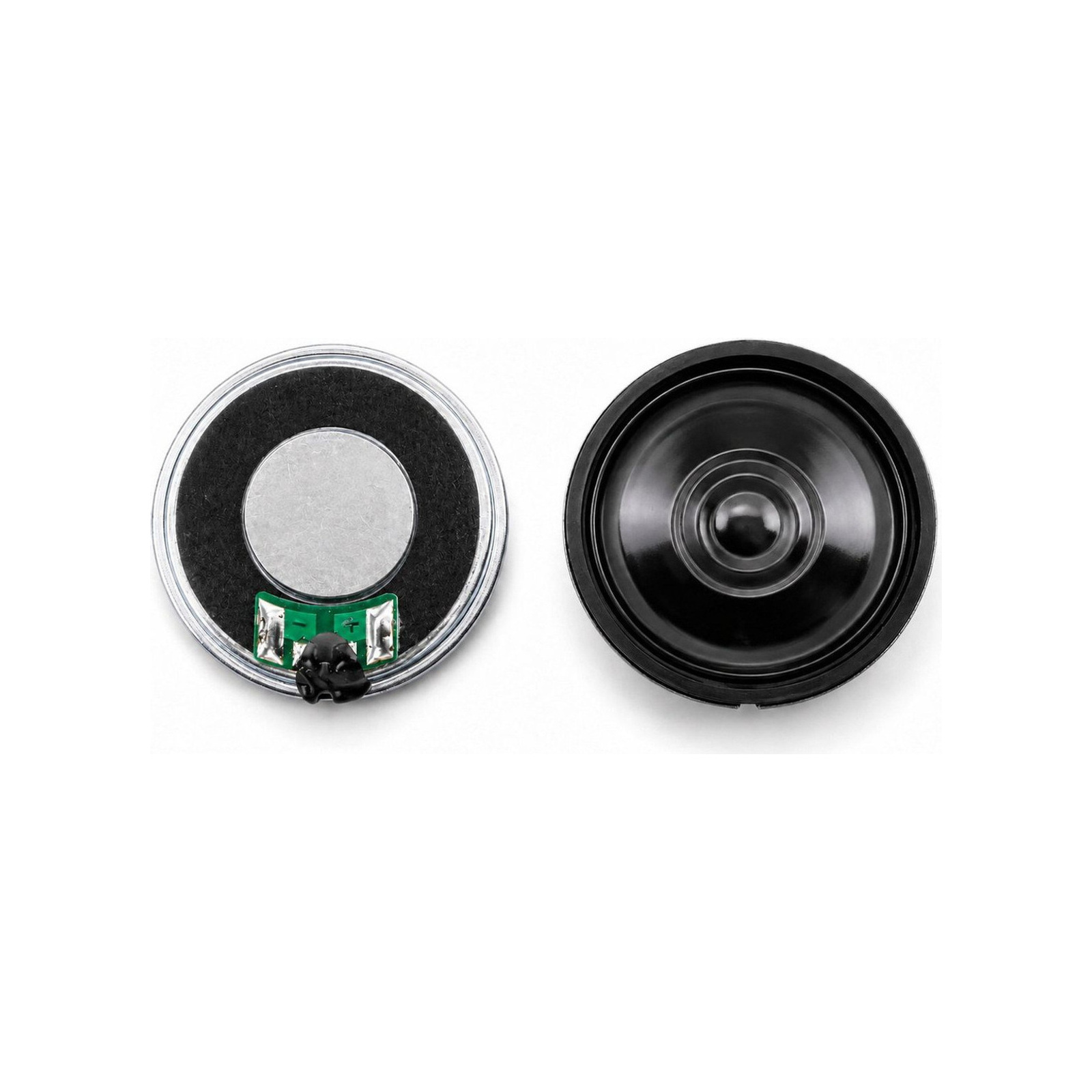

JC-SPKD36-MF01-16R1W Ø36×5.0 mm Round Dynamic Speaker
Model: JC-SPKD36-MF01-16R1W
JC-SPKD36-MF01-16R1W is a round dynamic speaker from Jiachuan Electronics. Confirm final suitability using the datasheet, sample evaluation, and device-level testing.
PRODUCT OVERVIEW
What is this product?
JC-SPKD36-MF01-16R1W is a round dynamic speaker from Jiachuan Electronics. Confirm final suitability using the datasheet, sample evaluation, and device-level testing.
Product series: Round Speakers. Match the installation space and drive conditions, then confirm final suitability with the datasheet, samples and device testing.
TECHNICAL SPECIFICATIONS
Technical Specifications
| Dimensions | Ø36×5.0 mm |
|---|---|
| Impedance | 16Ω ±15% |
| Rated Power | Rated 1.0W / Max 2.0W |
| Resonant Frequency (F0) | 570Hz ±20% |
| Sound Pressure Level (SPL) | 90±3dB |
| Frequency Range | F0–5kHz |
| Total Harmonic Distortion (THD) | ≤10% |

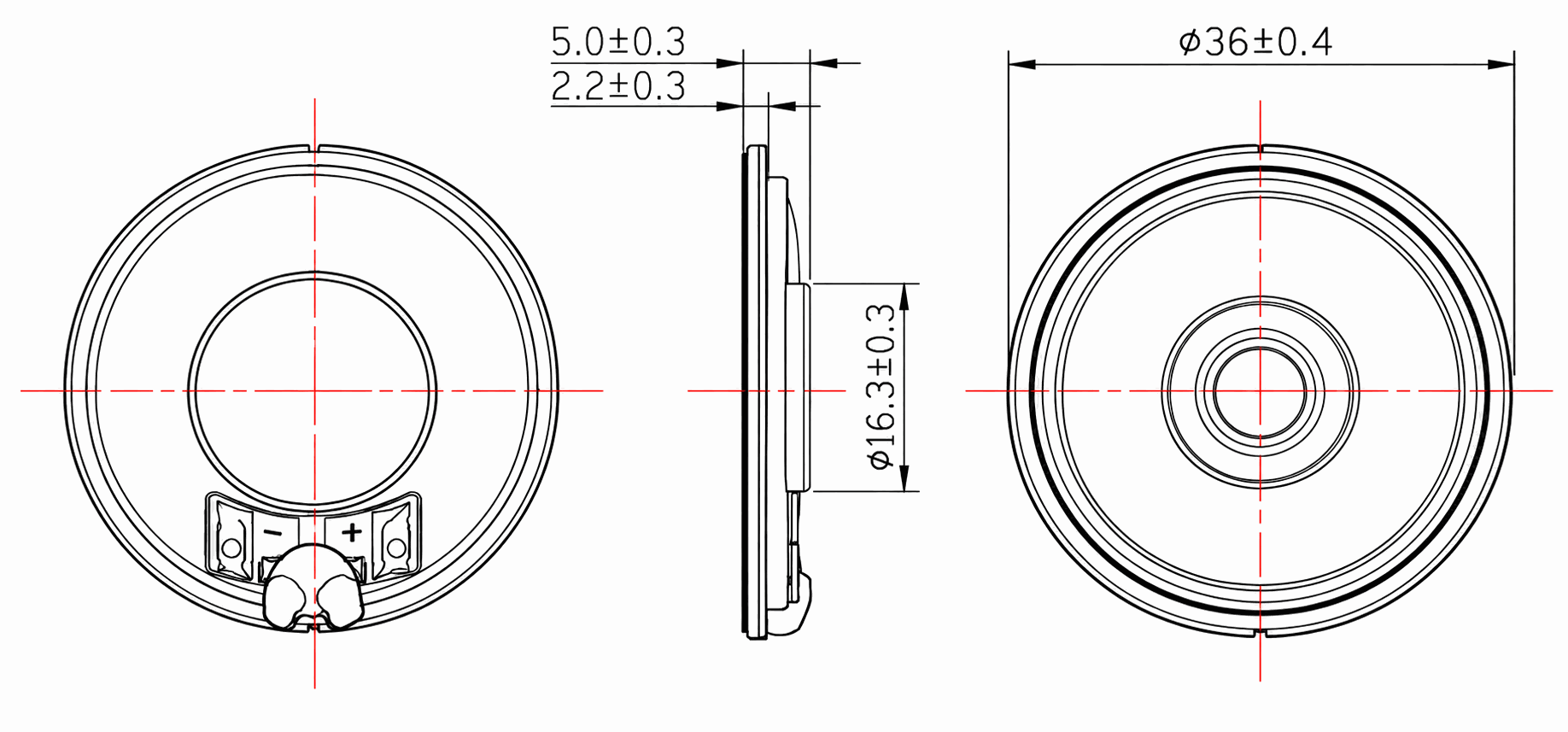

Mechanical Dimensions
Project Support
Product selection, sample evaluation, specification matching, small-batch validation and volume supply. Connection adjustments depend on the model and project requirements; new tooling or substantial structural changes require a separate assessment.
Frequently Asked Questions
What is JC-SPKD36-MF01-16R1W?
JC-SPKD36-MF01-16R1W is a Jiachuan Electronics Ø36 Round Dynamic Speaker.
What is the size of JC-SPKD36-MF01-16R1W?
The confirmed size is Ø36×5.0 mm.
What is the impedance of JC-SPKD36-MF01-16R1W?
The confirmed impedance is 16Ω ±15%.
What is the rated power of JC-SPKD36-MF01-16R1W?
The confirmed rated power is Rated 1.0W / Max 2.0W.
How should I confirm whether JC-SPKD36-MF01-16R1W fits my project?
Confirm installation space, driver circuit or amplifier conditions, target impedance/power, connection method and application requirements. Existing drawings or samples can be used for further matching.
Can samples of JC-SPKD36-MF01-16R1W be provided?
Contact Jiachuan Electronics to confirm sample quantity, lead time and the exact specification required for the project.
