Enclosed Speakers

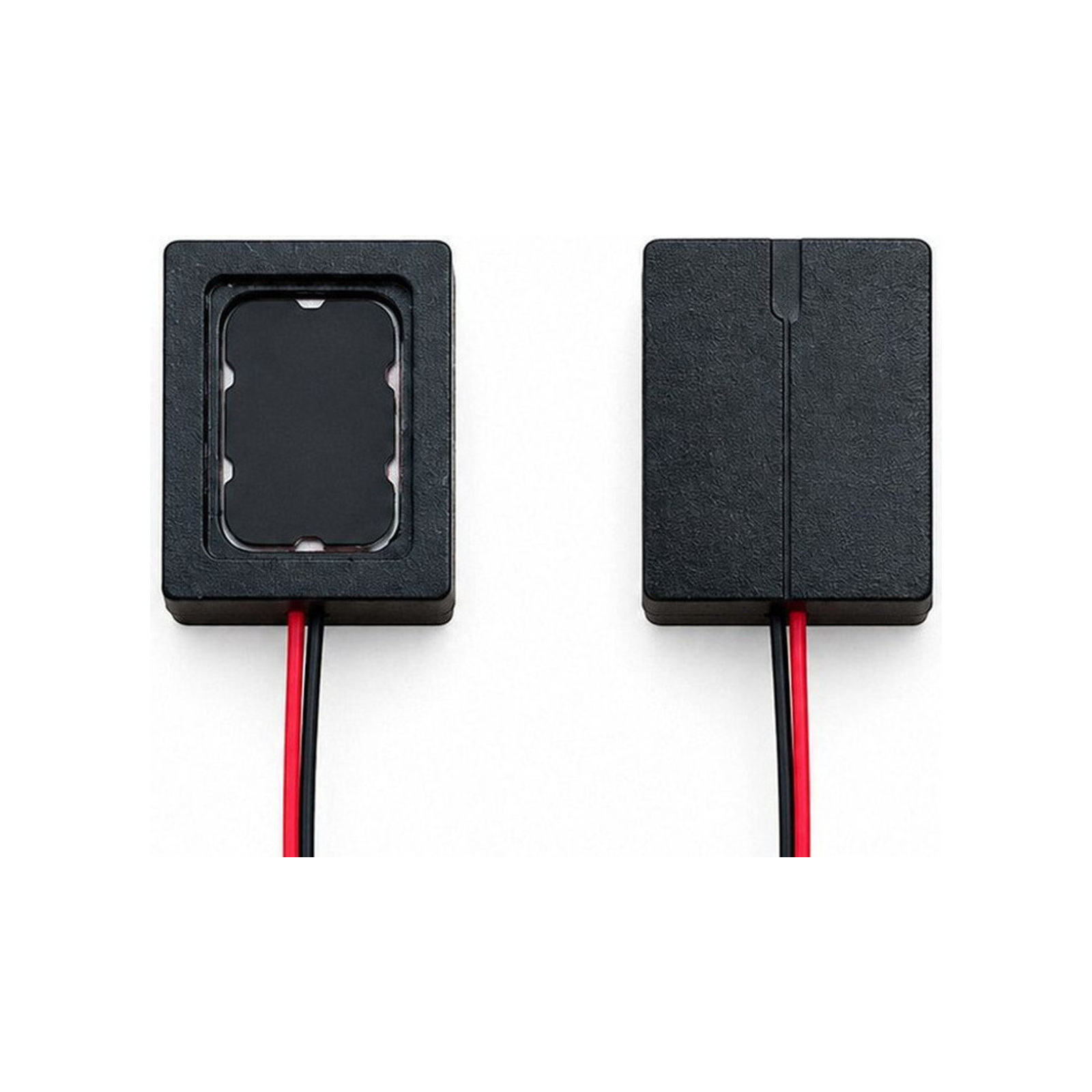

JC-SPK1713-BOX01-8R1W-WL 13×17×8.2 mm BOX Speaker
Model: JC-SPK1713-BOX01-8R1W-WL
JC-SPK1713-BOX01-8R1W-WL is a BOX speaker from Jiachuan Electronics. Confirm final suitability using the datasheet, sample evaluation, and device-level testing.
PRODUCT OVERVIEW
What is this product?
JC-SPK1713-BOX01-8R1W-WL is a BOX speaker from Jiachuan Electronics. Confirm final suitability using the datasheet, sample evaluation, and device-level testing.
Connection type: Lead Wire.
Product series: Enclosed Speakers. Match the installation space and drive conditions, then confirm final suitability with the datasheet, samples and device testing.
TECHNICAL SPECIFICATIONS
Technical Specifications
| Dimensions | 13×17×8.2 mm |
|---|---|
| Impedance | 8Ω ±15% |
| Rated Power | Rated 1.0W / Max 1.3W |
| DC Resistance (DCR) | 7.8Ω ±10% |
| Resonant Frequency (F0) | 550Hz ±20% |
| Sound Pressure Level (SPL) | 96±3 dB SPL |
| Frequency Range | F0 ~ 20kHz |
| Total Harmonic Distortion (THD) | ≤10% |
| Weight | 1.5g |
| Connection Type | Lead Wire |

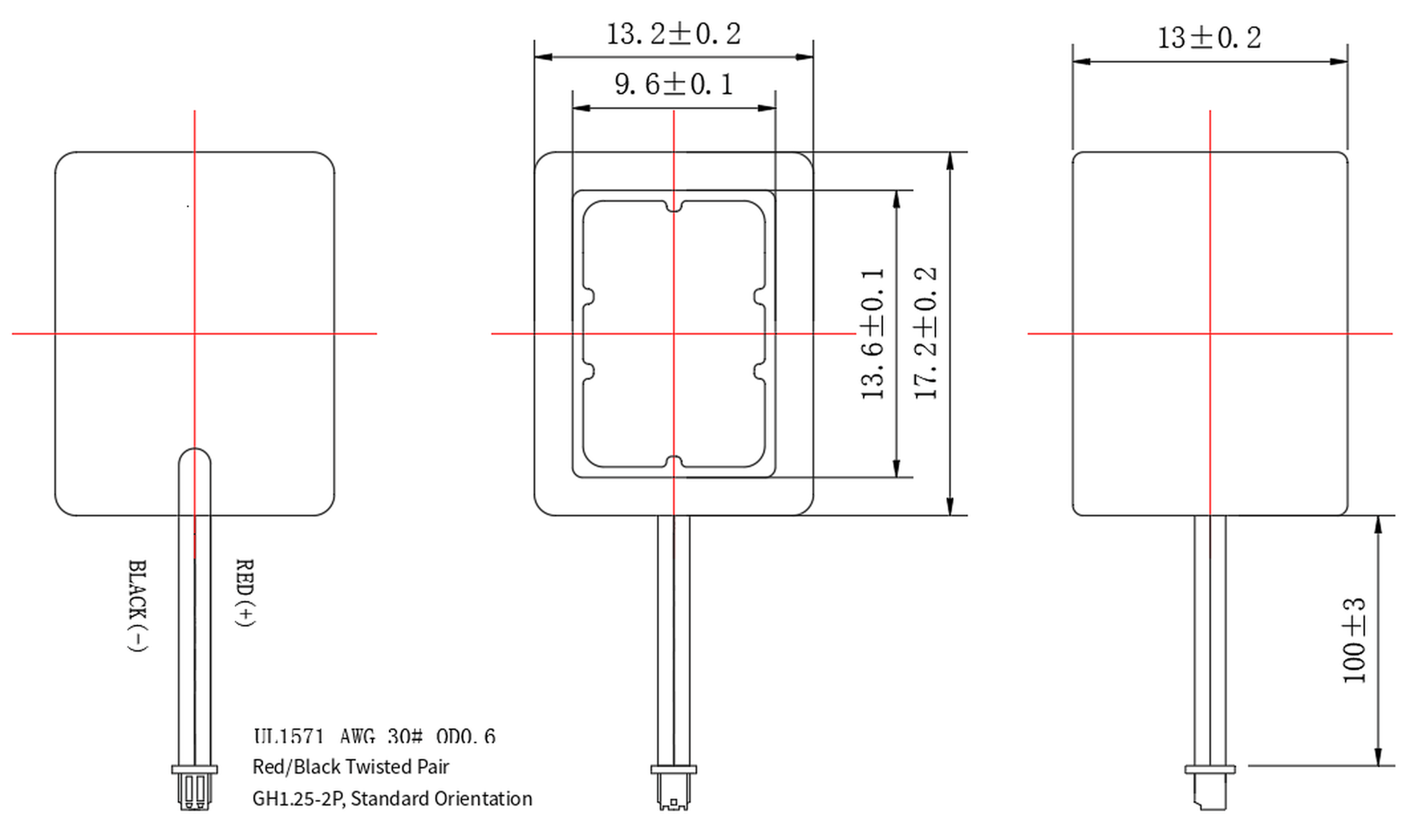

Mechanical Dimensions

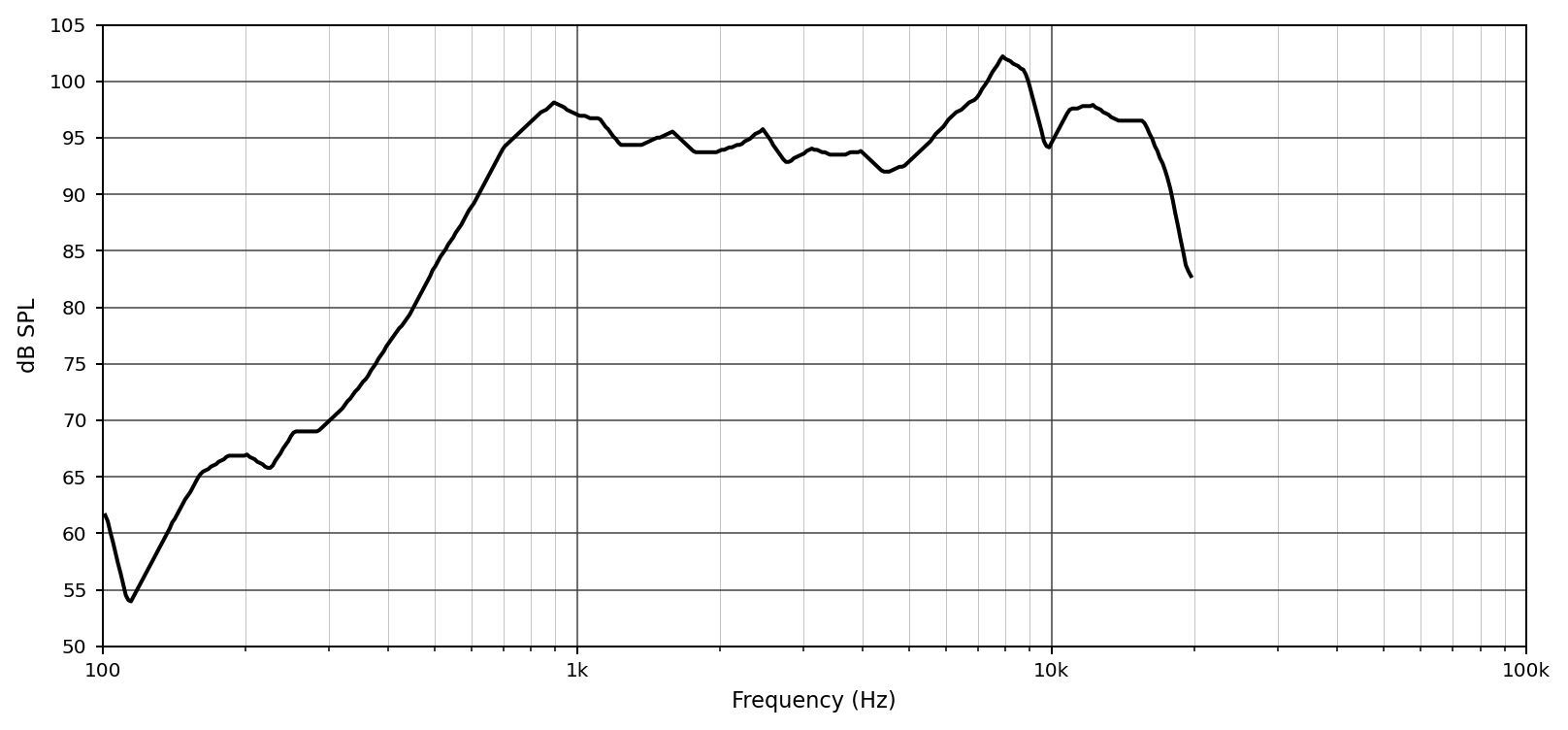

Frequency Response / Impedance Curve
Project Support
Product selection, sample evaluation, specification matching, small-batch validation and volume supply. Connection adjustments depend on the model and project requirements; new tooling or substantial structural changes require a separate assessment.
Frequently Asked Questions
What is JC-SPK1713-BOX01-8R1W-WL?
JC-SPK1713-BOX01-8R1W-WL is a Jiachuan Electronics 13×17 BOX Speaker.
What is the size of JC-SPK1713-BOX01-8R1W-WL?
The confirmed size is 13×17×8.2 mm.
What is the impedance of JC-SPK1713-BOX01-8R1W-WL?
The confirmed impedance is 8Ω ±15%.
What is the rated power of JC-SPK1713-BOX01-8R1W-WL?
The confirmed rated power is Rated 1.0W / Max 1.3W.
Is JC-SPK1713-BOX01-8R1W-WL a BOX speaker?
Yes. It is classified as a BOX/enclosure speaker in the V3 product master.
What connection type does JC-SPK1713-BOX01-8R1W-WL use?
The confirmed connection type is Wire.
How should I confirm whether JC-SPK1713-BOX01-8R1W-WL fits my project?
Confirm installation space, driver circuit or amplifier conditions, target impedance/power, connection method and application requirements. Existing drawings or samples can be used for further matching.
Can samples of JC-SPK1713-BOX01-8R1W-WL be provided?
Contact Jiachuan Electronics to confirm sample quantity, lead time and the exact specification required for the project.
