JC-SPKD23-BOX01-8R0P5W-PIN Φ23 × 6.8H mm Round BOX Pin-Terminal Dynamic Speaker
Model: JC-SPKD23-BOX01-8R0P5W-PIN
JC-SPKD23-BOX01-8R0P5W-PIN is a round BOX pin-terminal dynamic speaker from Jiachuan Electronics. Confirm final suitability using the datasheet, sample evaluation, and device-level testing.
PRODUCT OVERVIEW
What is this product?

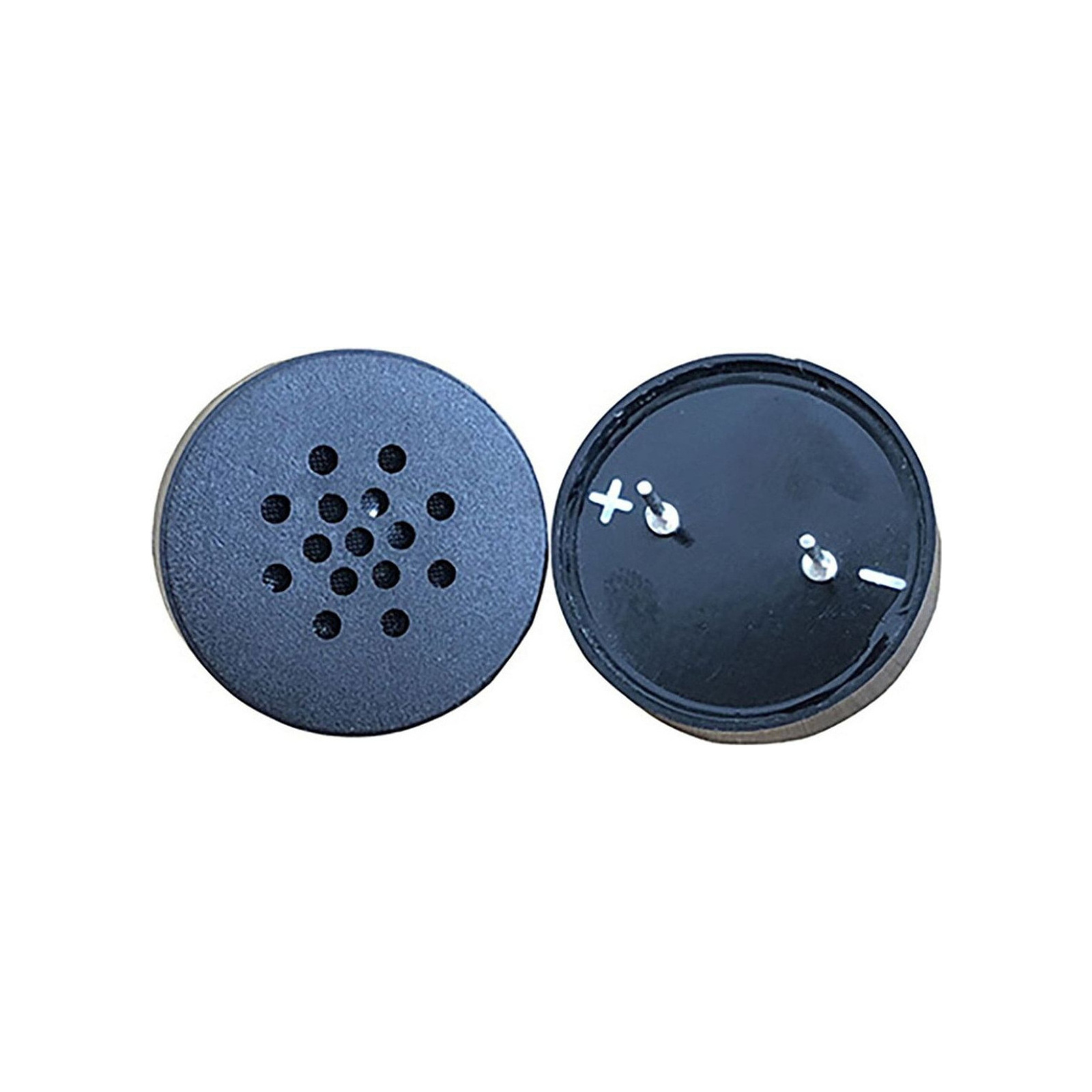

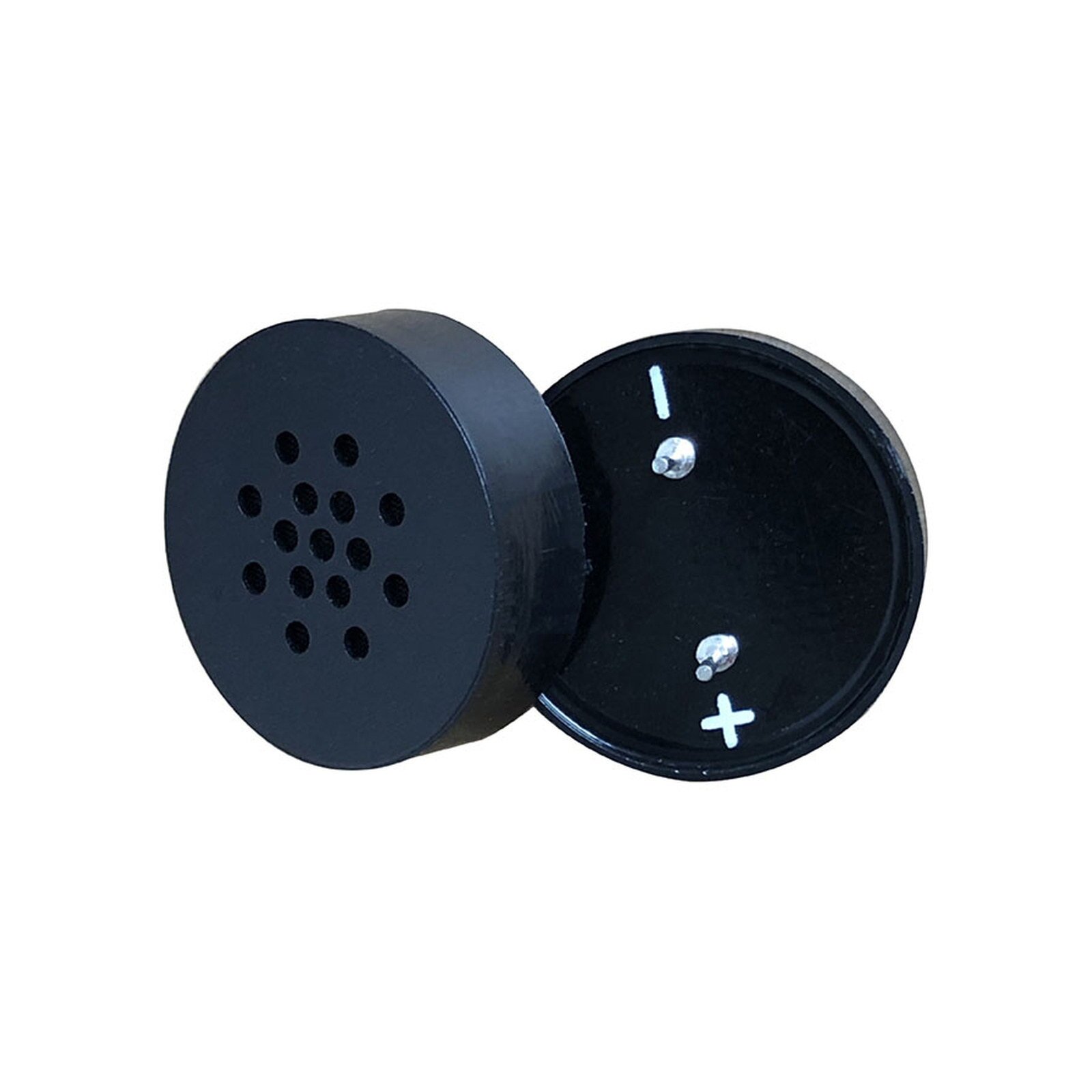

JC-SPKD23-BOX01-8R0P5W-PIN is a round BOX pin-terminal dynamic speaker from Jiachuan Electronics. Confirm final suitability using the datasheet, sample evaluation, and device-level testing.
Connection type: PCB Pin.
Product series: Enclosed Speakers. Match the installation space and drive conditions, then confirm final suitability with the datasheet, samples and device testing.
TECHNICAL SPECIFICATIONS
Technical Specifications
| Dimensions | Φ23 × 6.8H mm |
|---|---|
| Impedance | 8 ±15% Ω |
| Rated Power | 0.5 W |
| Maximum Power | 1.0 W |
| Resonant Frequency (F0) | 1700 ±20% Hz |
| Sound Pressure Level (SPL) | 88 ±3 dB SPL |
| Weight | 7.5 g |
| Connection Type | PCB Pin |

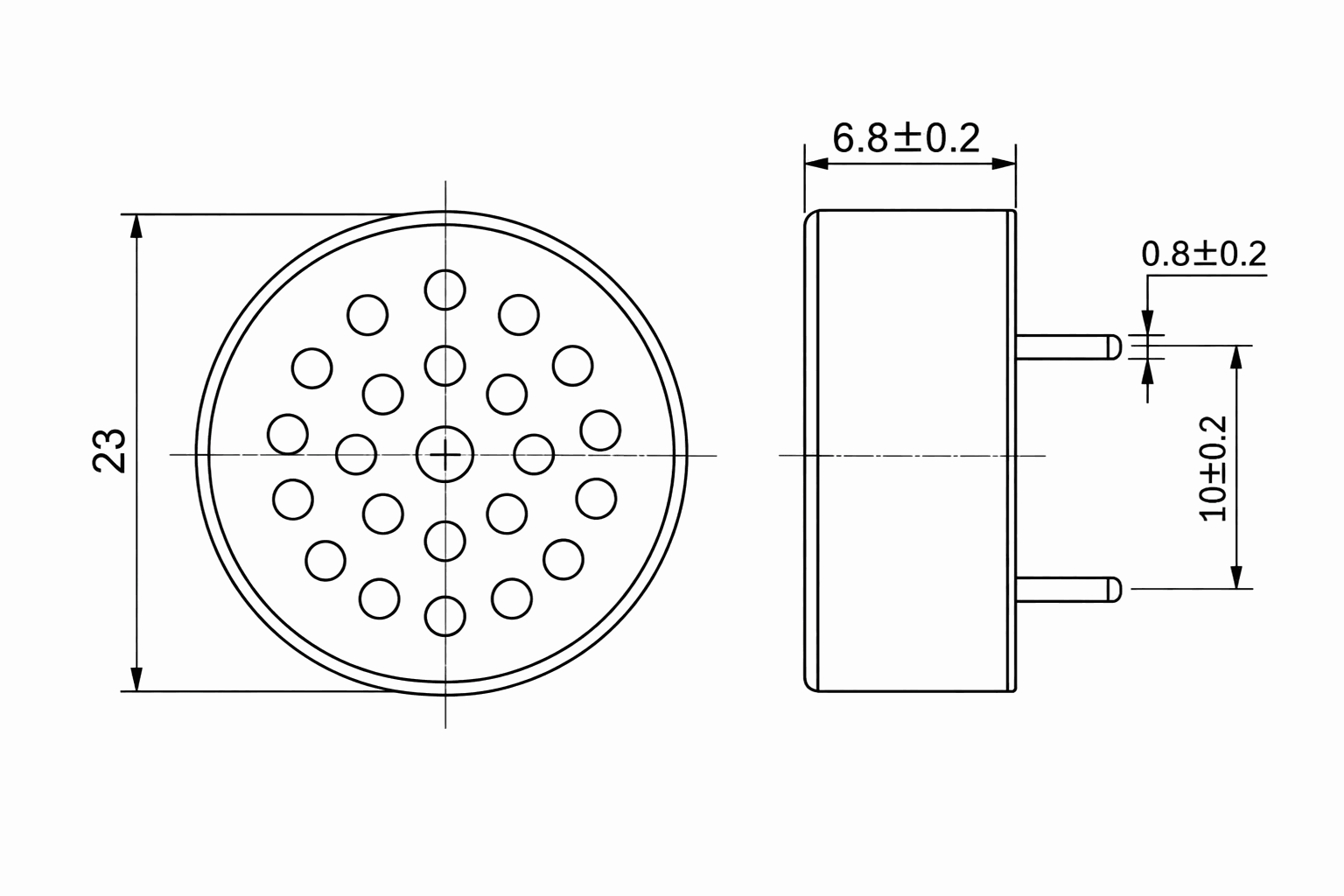

Mechanical Dimensions

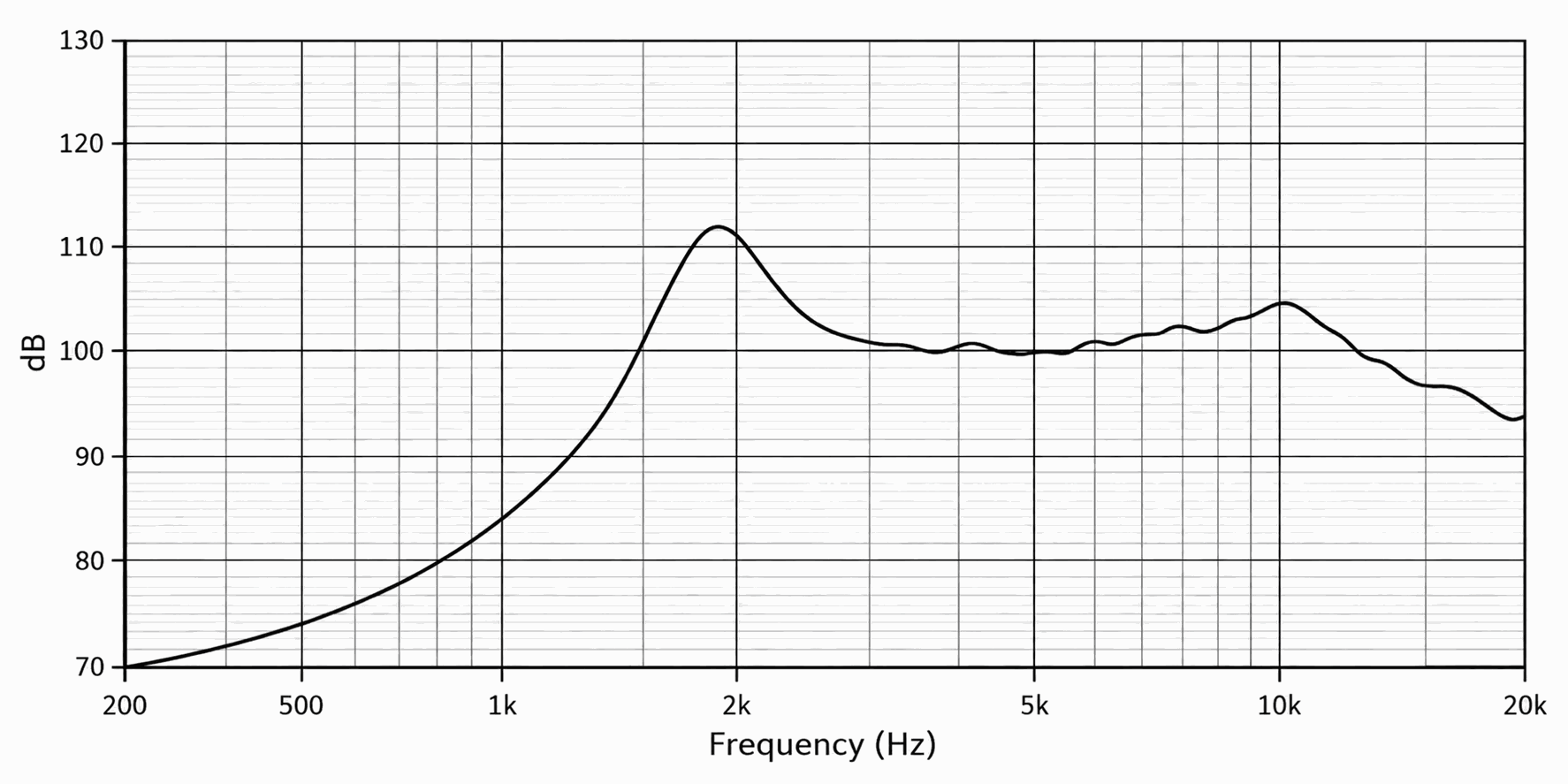

Frequency Response / Impedance Curve
Project Support
Product selection, sample evaluation, specification matching, small-batch validation and volume supply. Connection adjustments depend on the model and project requirements; new tooling or substantial structural changes require a separate assessment.
Frequently Asked Questions
What is JC-SPKD23-BOX01-8R0P5W-PIN?
JC-SPKD23-BOX01-8R0P5W-PIN is a Jiachuan Electronics 23mm Round BOX Pin-Terminal Dynamic Speaker.
What is the size of JC-SPKD23-BOX01-8R0P5W-PIN?
The confirmed size is Φ23 × 6.8H mm.
What is the impedance of JC-SPKD23-BOX01-8R0P5W-PIN?
The confirmed impedance is 8 ±15% Ω.
What is the rated power of JC-SPKD23-BOX01-8R0P5W-PIN?
The confirmed rated power is 0.5 W.
Is JC-SPKD23-BOX01-8R0P5W-PIN a BOX speaker?
Yes. It is classified as a BOX/enclosure speaker in the V3 product master.
What connection type does JC-SPKD23-BOX01-8R0P5W-PIN use?
The confirmed connection type is Pin.
How should I confirm whether JC-SPKD23-BOX01-8R0P5W-PIN fits my project?
Confirm installation space, driver circuit or amplifier conditions, target impedance/power, connection method and application requirements. Existing drawings or samples can be used for further matching.
Can samples of JC-SPKD23-BOX01-8R0P5W-PIN be provided?
Contact Jiachuan Electronics to confirm sample quantity, lead time and the exact specification required for the project.
