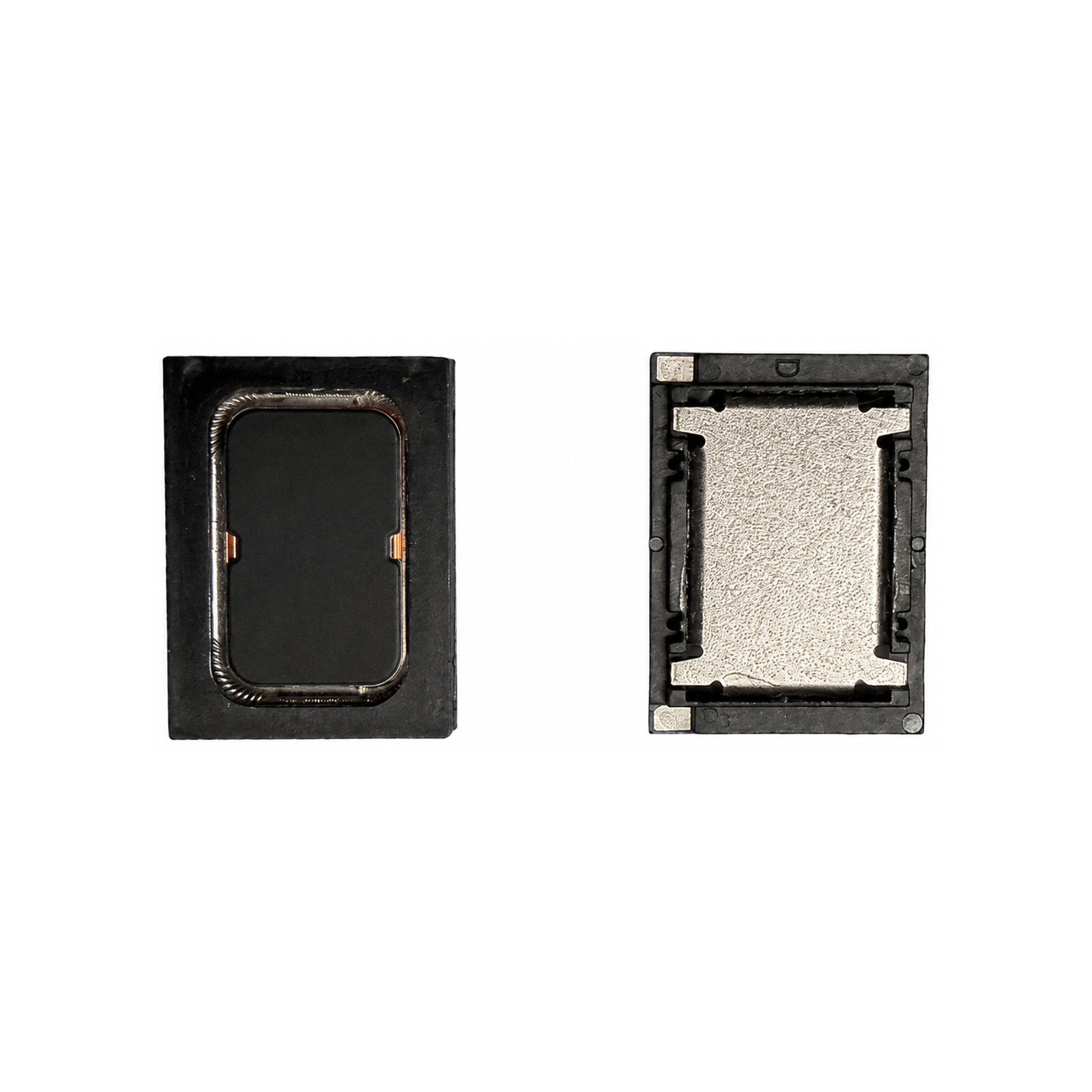

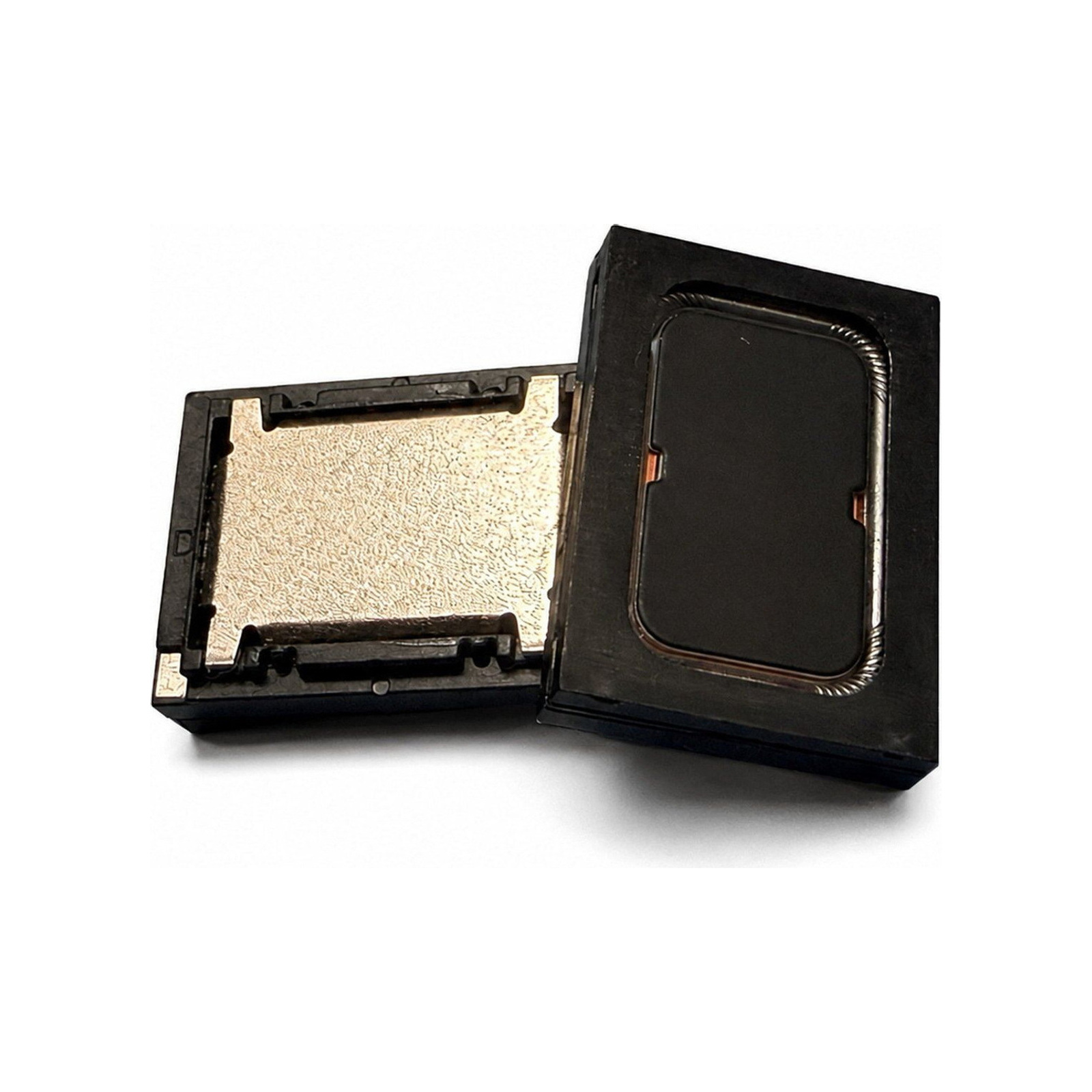

JC-SPK1813-PF01-8R1W-PN 18×13×4.5mm Rectangular Dynamic Speaker
Model: JC-SPK1813-PF01-8R1W-PN
JC-SPK1813-PF01-8R1W-PN is a rectangular dynamic speaker from Jiachuan Electronics. Confirm final suitability using the datasheet, sample evaluation, and device-level testing.
PRODUCT OVERVIEW
What is this product?
JC-SPK1813-PF01-8R1W-PN is a rectangular dynamic speaker from Jiachuan Electronics. Confirm final suitability using the datasheet, sample evaluation, and device-level testing.
Connection type: PCB Pin.
Product series: Enclosed Speakers. Match the installation space and drive conditions, then confirm final suitability with the datasheet, samples and device testing.
TECHNICAL SPECIFICATIONS
Technical Specifications
| Dimensions | 18×13×4.5mm |
|---|---|
| Impedance | 8Ω ±15% |
| Resonant Frequency (F0) | 500 Hz ±20% |
| Sound Pressure Level (SPL) | 100 ±3 dB SPL |
| Frequency Range | F0 ~ 20 kHz |
| Total Harmonic Distortion (THD) | ≤10% |
| Weight | 2.8 g |
| Operating Temperature | -20°C ~ +70°C |
| Storage Temperature | -40°C ~ +85°C |
| Connection Type | PCB Pin |

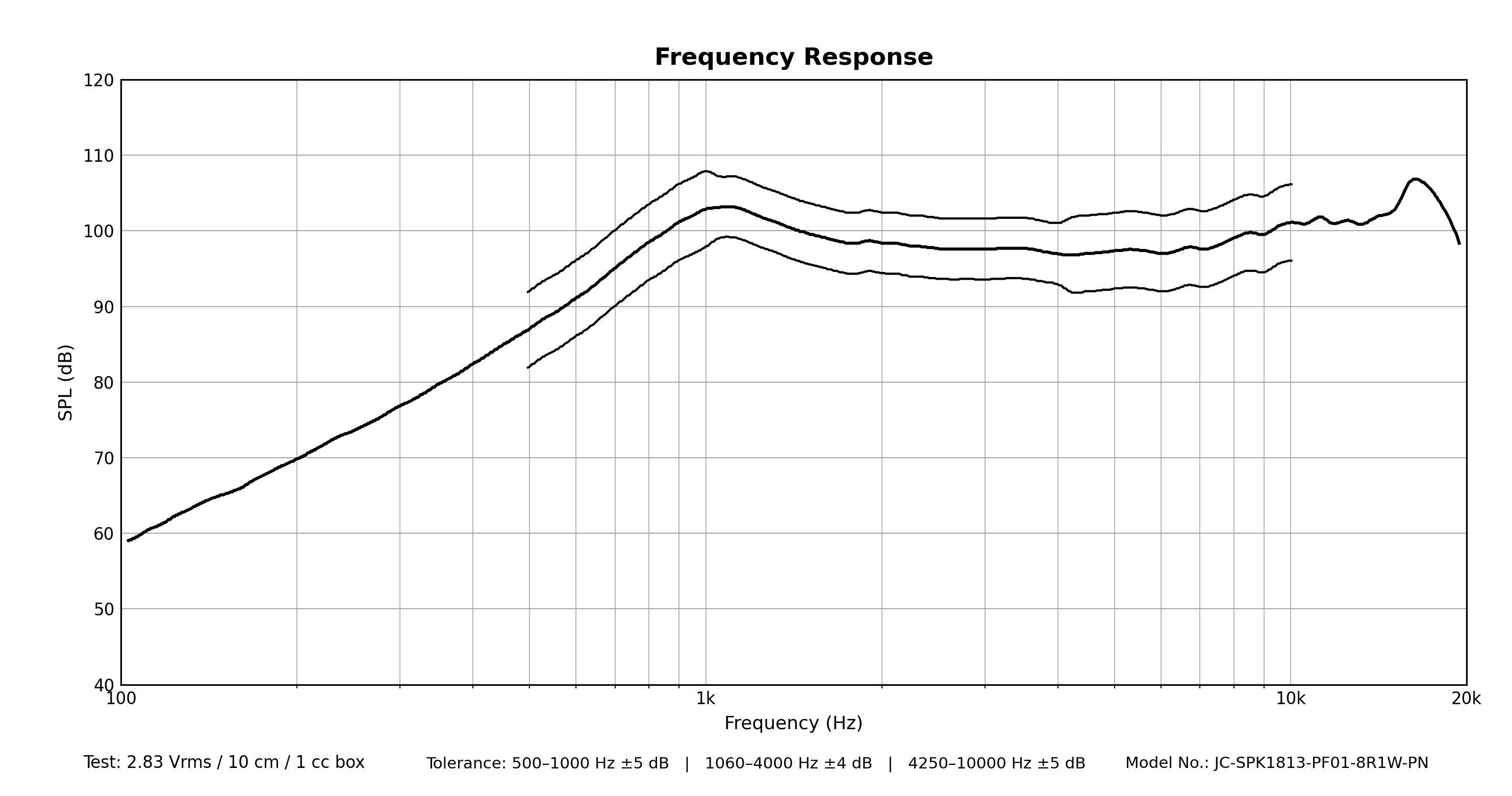

Frequency Response / Impedance Curve
Project Support
Product selection, sample evaluation, specification matching, small-batch validation and volume supply. Connection adjustments depend on the model and project requirements; new tooling or substantial structural changes require a separate assessment.
