Enclosed Speakers

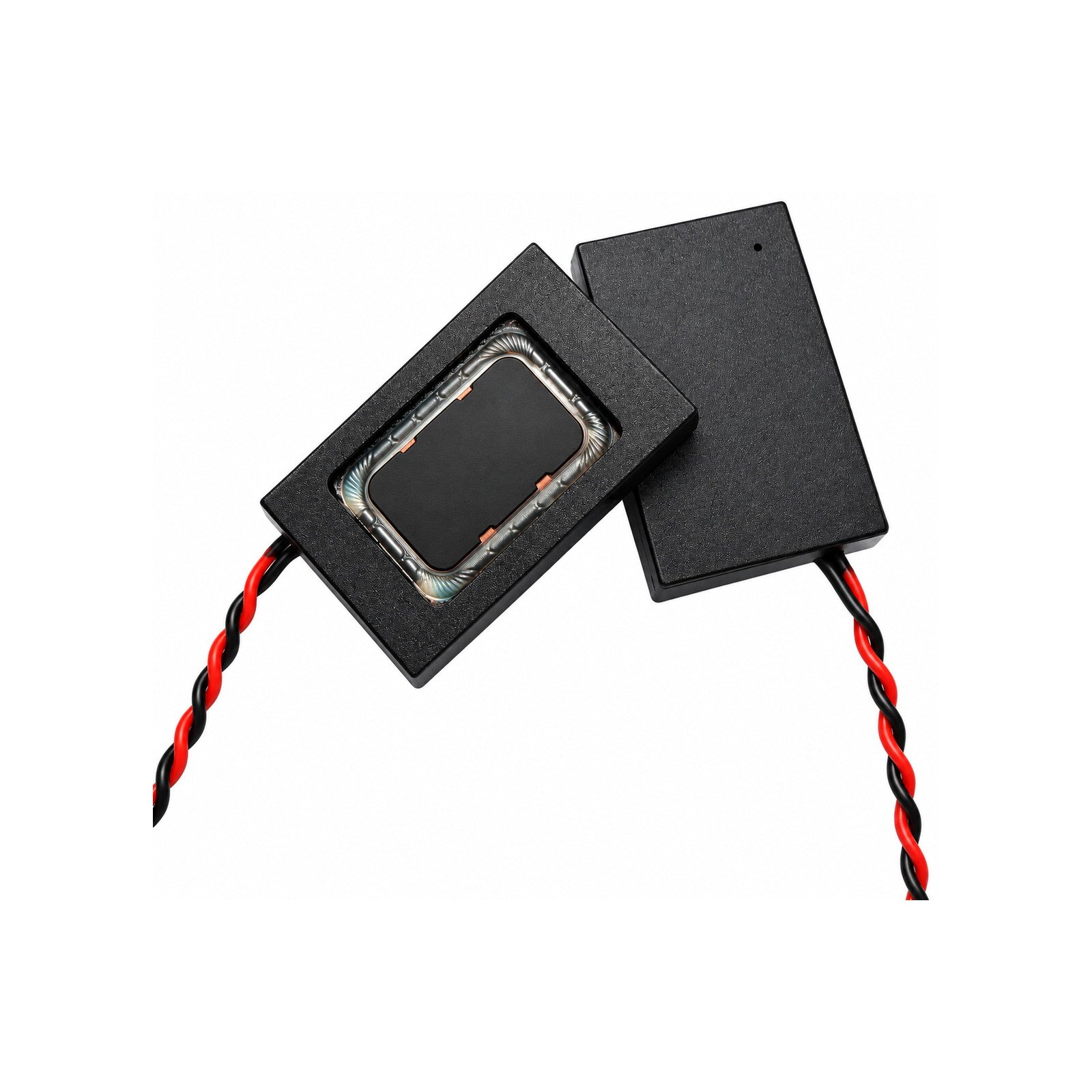

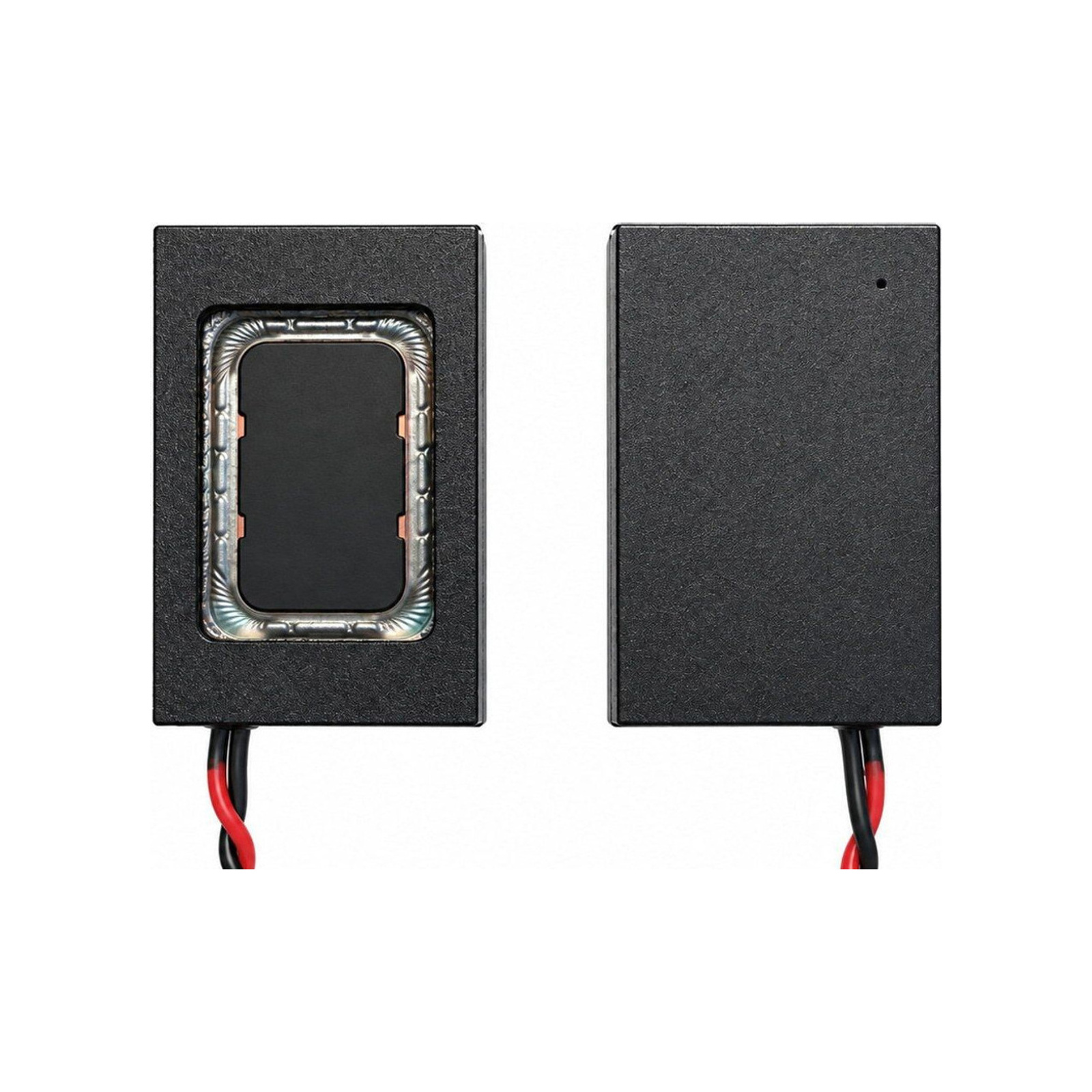

JC-SPK2415-BOX01-8R1W-W 24×15×6.0mm Rectangular BOX Speaker
Model: JC-SPK2415-BOX01-8R1W-W
JC-SPK2415-BOX01-8R1W-W is a rectangular BOX speaker from Jiachuan Electronics. Confirm final suitability using the datasheet, sample evaluation, and device-level testing.
PRODUCT OVERVIEW
What is this product?
JC-SPK2415-BOX01-8R1W-W is a rectangular BOX speaker from Jiachuan Electronics. Confirm final suitability using the datasheet, sample evaluation, and device-level testing.
Connection type: Lead Wire.
Product series: Enclosed Speakers. Match the installation space and drive conditions, then confirm final suitability with the datasheet, samples and device testing.
TECHNICAL SPECIFICATIONS
Technical Specifications
| Dimensions | 24×15×6.0mm |
|---|---|
| Impedance | 8.0Ω ±20% |
| Rated Power | 1.0W |
| Maximum Power | 1.2W |
| Resonant Frequency (F0) | 1060Hz ±20% |
| Sound Pressure Level (SPL) | 92±3dB |
| Frequency Range | Fo~20kHz |
| Total Harmonic Distortion (THD) | <5% |
| Operating Temperature | -25℃~+65℃ |
| Storage Temperature | -25℃~+65℃ |
| Connection Type | Lead Wire |

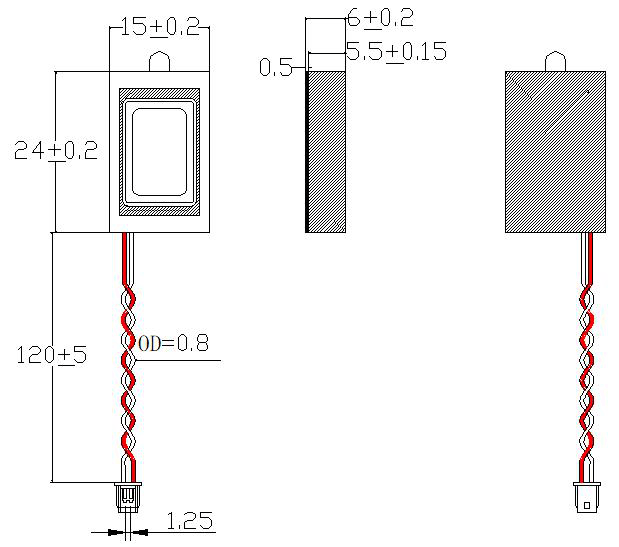

Mechanical Dimensions

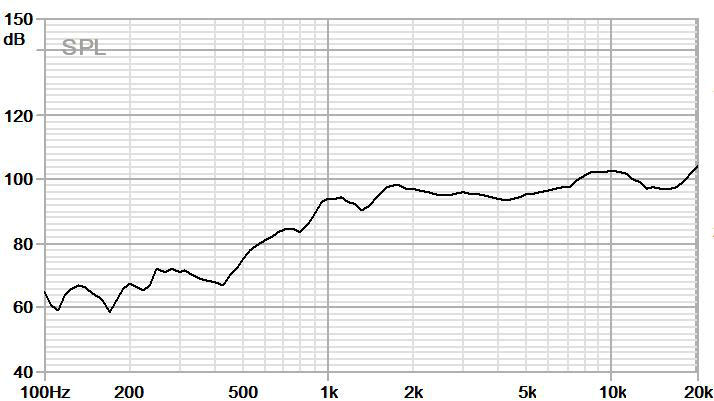

Frequency Response / Impedance Curve
Project Support
Product selection, sample evaluation, specification matching, small-batch validation and volume supply. Connection adjustments depend on the model and project requirements; new tooling or substantial structural changes require a separate assessment.
Frequently Asked Questions
What is JC-SPK2415-BOX01-8R1W-W?
JC-SPK2415-BOX01-8R1W-W is a Jiachuan Electronics Rectangular BOX Speaker.
What is the size of JC-SPK2415-BOX01-8R1W-W?
The confirmed size is 24×15×6.0mm.
What is the impedance of JC-SPK2415-BOX01-8R1W-W?
The confirmed impedance is 8.0Ω ±20%.
What is the rated power of JC-SPK2415-BOX01-8R1W-W?
The confirmed rated power is 1.0W.
Is JC-SPK2415-BOX01-8R1W-W a BOX speaker?
Yes. It is classified as a BOX/enclosure speaker in the V3 product master.
What connection type does JC-SPK2415-BOX01-8R1W-W use?
The confirmed connection type is Wire.
How should I confirm whether JC-SPK2415-BOX01-8R1W-W fits my project?
Confirm installation space, driver circuit or amplifier conditions, target impedance/power, connection method and application requirements. Existing drawings or samples can be used for further matching.
Can samples of JC-SPK2415-BOX01-8R1W-W be provided?
Contact Jiachuan Electronics to confirm sample quantity, lead time and the exact specification required for the project.
