JC-SPKD30-BOX02-8R1W-W 30 mm Enclosed Speaker with 4P Connector
Model: JC-SPKD30-BOX02-8R1W-W
JC-SPKD30-BOX02-8R1W-W is an enclosed speaker from Jiachuan Electronics. Confirm final suitability using the datasheet, sample evaluation, and device-level testing.
PRODUCT OVERVIEW
What is this product?
JC-SPKD30-BOX02-8R1W-W is an enclosed speaker from Jiachuan Electronics. Confirm final suitability using the datasheet, sample evaluation, and device-level testing.
Connection type: Lead Wire.
Product series: Enclosed Speakers. Match the installation space and drive conditions, then confirm final suitability with the datasheet, samples and device testing.
TECHNICAL SPECIFICATIONS
Technical Specifications
| Dimensions | Φ30 × 10.8 ± 0.2 mm |
|---|---|
| Wire Length | 325 ± 10 mm |
| Connector | 4P-1.25 |
| Impedance | 8±15%Ω / 2kHz / 1V |
| Rated Power | 1.0W |
| Maximum Power | 1.5W |
| Resonant Frequency (F0) | 1200±20%Hz / 1V |
| Sound Pressure Level (SPL) | 94±3dB, AVG 0.8/1.0/1.5/2.0kHz, 0.1W/0.1m, IEC baffle |
| Frequency Range | F0~20kHz |
| Total Harmonic Distortion (THD) | ≤10% at 1kHz, 1.0W |
| Weight | 6.5±0.5g |
| Operating Temperature | -20°C~+60°C |
| Storage Temperature | -30°C~+70°C |
| Connection Type | Lead Wire |

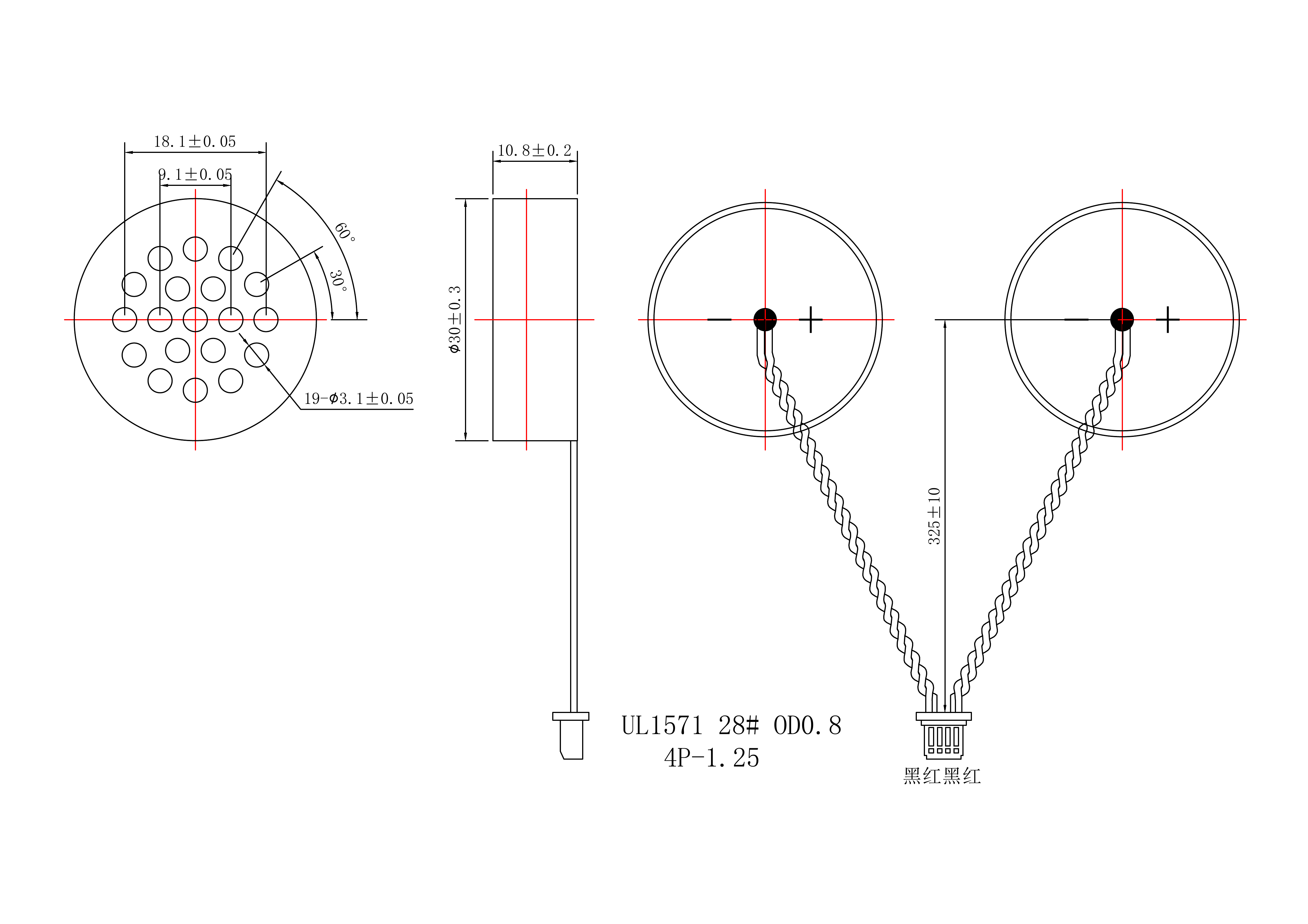

Mechanical Dimensions

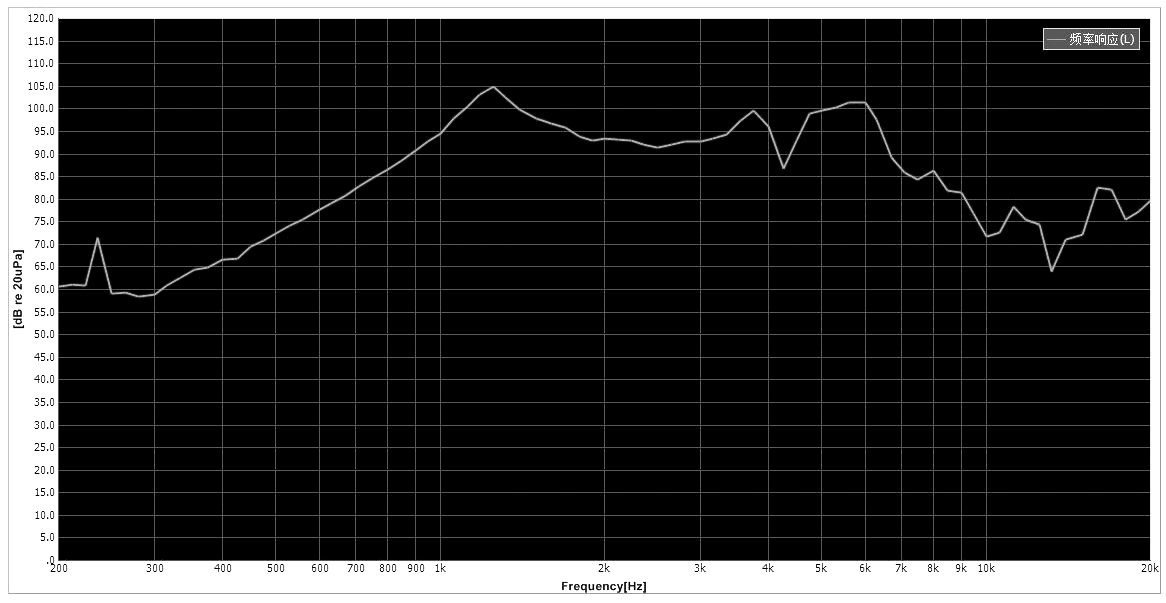

Frequency Response / Impedance Curve
Project Support
Product selection, sample evaluation, specification matching, small-batch validation and volume supply. Connection adjustments depend on the model and project requirements; new tooling or substantial structural changes require a separate assessment.
Frequently Asked Questions
What is the impedance of JC-SPKD30-BOX02-8R1W-W?
The confirmed impedance is 8±15%Ω / 2kHz / 1V.
What is the rated power of JC-SPKD30-BOX02-8R1W-W?
The confirmed rated power is 1.0W.
Is JC-SPKD30-BOX02-8R1W-W a BOX speaker?
Yes. It is classified as a BOX/enclosure speaker in the V3 product master.
What connection type does JC-SPKD30-BOX02-8R1W-W use?
The confirmed connection type is Wire.
How should I confirm whether JC-SPKD30-BOX02-8R1W-W fits my project?
Confirm installation space, driver circuit or amplifier conditions, target impedance/power, connection method and application requirements. Existing drawings or samples can be used for further matching.
Can samples of JC-SPKD30-BOX02-8R1W-W be provided?
Contact Jiachuan Electronics to confirm sample quantity, lead time and the exact specification required for the project.
What is the dimensions of JC-SPKD30-BOX02-8R1W-W?
Dimensions: Φ30×10.8±0.2 mm; Wire Length: 325±10 mm; 4P-1.25 Connector.
